What materials are pouches made of?

Pouches can be made of different kinds of film. We have High Density film (HD) and Low Density film (LD).

Material specifications

.. outside layer / .. middle layer (option) / .. Inside layer





Low Density film (LD)
Clear/clear
28gr, 70gr, 100gr, 150gr	12 mic PET/80 mic PE
250gr, 500gr, 1kg	12 mic PET/100 mic PE
	Clear/ color and all Color + window
28gr, 70gr, 100gr, 150gr	12 mic PET/80 mic PE
250gr, 500gr, 1kg	12 mic PET/100 mic PE
3kg	12 mic PET/135 mic PE
4kg	12 mic PET/165 mic PE
	Kraft paper + window
28gr, 70gr, 100gr, 150gr, 250gr	60 gr-m2 Kraft paper/80 mic PE























High Density film (HD)
	Color/color (+matt gold & matt silver)
28gr, 70gr, 100gr, 150gr	12 mic PET/12 mic MET-PET/85 mic PE
250gr, 500gr, 1kg	12 mic PET/12 mic MET-PET/100 mic PE
3kg	12 mic PET/12 mic MET-PET/135 mic PE
4kg	12 mic PET/12 mic MET-PET/165 mic PE
2kg, 3kg side gusset pouches	12 mic PET/12 mic MET-PET/140 mic PE
	Kraft paper
28gr, 70gr, 100gr, 150gr	65 gr-m2 Kraft paper/12 mic MET PET/80 mic PE
250gr, 500gr, 1kg	65 gr-m2 Kraft paper/12 mic MET PET/80 mic PE
	Matt black & matt white
28gr, 70gr, 100gr, 150gr	15 mic matt BOPP/12 mic MET PET/100 mic PE
250gr, 500gr, 1kg	15 mic matt BOPP/12 mic MET PET/100 mic PE
	Spouted pouches
100ml, 200ml, 350ml, 500ml	12 mic PET/100 mic nylon EVOH nylon PE 7 layer
750ml, 1000ml	12 mic PET/100 mic nylon EVOH nylon PE 7 layer

































Mic      = Micron. The term micron and the symbol μ stands for one-thousandth of a millimeter, 0.001 mm

PET     = Polyethylene terephthalate is a polyester. Gives the nessecary stifness to the pouch.

PE       = Polyethylene or Polythene is the most common plastic.

BOPP  = Biaxially Oriented Polypropylene. Gives the product a nice matt finish.

EVOH  = Ethylene Vinyl Alcohol: is a formal copolymer of ethylene and vinyl alcohol (nylon film).

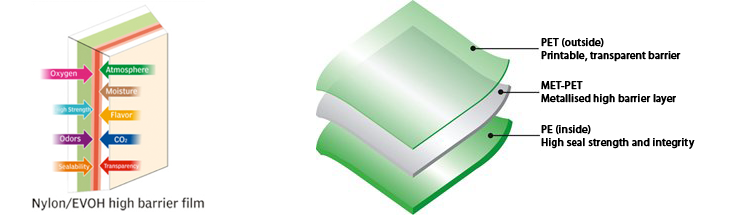

What is ‘Metallized’ film (MET-PET)?

Metallized film is a plastic film which has a thin coat of meta applied to it. The aluminum-coated film has a bright and shiny decorative surface effect. Additionally metallized film has added barrier properties and in a laminated structure can significantly enhance both gas and moister protection. Metallized film is often seen in applications in pouches for snacks, coffee and candy.



What is ‘Laminated’ material?

A material which is composed of multiple layers of different materials which are joined together to form a single sheet. The objective of combining different materials together is to create a new material with a combination of properties not available from any single material.



What is the difference between Nylon film and Polyethylene?

Nylon is good for oxygen barrier and impact strength, but the price is high.
Polyethylene such as PE have their own characteristics and is a lot cheaper.
